Introduction: The Heart of IoT Projects – Choosing the Right Sensor
The world of the Internet of Things is a world in constant flux where sensors are silent heroes that will help bring your project to reality. Whether it is to keep your house comfortable with a smart thermostat, monitor your pulse with a fitness tracker, or agricultural systems that guarantee optimal crop growth are in the middle of any application involving IoT. Sensors serve like “eyes” and “ears” for any system, observing key data from the environment and transferring it into the digital world.
With so many sensors around for every specific application, selecting the appropriate one for a project could be an overwhelming job. From the parameters you need to measure to ensuring that the sensor for an IoT project will be compatible with your system’s hardware and communication protocols, choosing a sensor for an IoT project is all about balancing technical knowledge, practicality, and sometimes even creativity. This will help make that process easier for you, whether you are just starting in your first IoT adventure or are an established developer wanting to hone your skills. We take you through the types of sensors, key selection criteria, and some practical tips to make your project a success.
Now, let’s get into the weeds and learn how to select the right sensor for an IoT project that will breathe life into your IoT imagination.
What are sensors in IoT?
In the realm of the Internet of Things (IoT), sensors are fundamental components that detect and measure physical phenomena—such as temperature, light, and motion—and convert them into data that can be interpreted by electronic systems. They serve as the interface between the physical world and digital systems, enabling devices to monitor and respond to environmental changes. (https://www.zipitwireless.com/blog/what-are-iot-sensors-types-uses-and-examples)
Most common Confusions regarding Sensors and Transducers
Sensor: A device that change the physical phenomena into a measurable output. Sensors focus on detecting and measuring specific physical phenomena, providing outputs in usable formats.. Primarily used to measure physical conditions and provide readable outputs for monitoring or control systems.
Transducer: Transducer means converting one form of energy into another form. Almost all signal transformation systems feature transducers, wherein one type of energy is converted to another. Such devices are used mainly in communication systems for converting signals of diverse physical forms to electronic signals and vice versa.
Both are not the same. But both falls under input devices in a system
Differences between Analog vs. Digital Sensors.
- Analog Sensors: Analog sensors are those that give a continuous signal or voltage proportional to the measured parameter.
- Eg: Potentiometers, LDRs, or light-dependent resistors
- Digital Sensors: Digital sensors give discrete quantized data, typically in a binary form. It has high precision and is less prone to noise. But usually requires a protocol interface.
- Eg: DHT11 for temperature and humidity, I2C-based sensors like BMP280
Sensor Communication Protocols
Communication protocols in IoT define how sensors transfer data to processors. It involves distinguishing the various wired and wireless protocols that may be used to communicate.

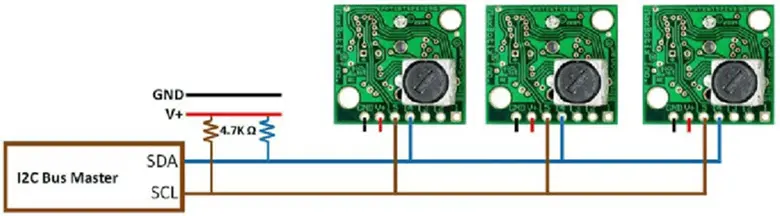

1. I2C (Inter-Integrated Circuit): A two-wire protocol, one wire carries data while the other is for clock synchronization.
This method is used to connect multiple sensors in short-distance applications.
- Advantages: Easy wiring, supports multi-device connection.
- Limitations: Only short-distance communications.

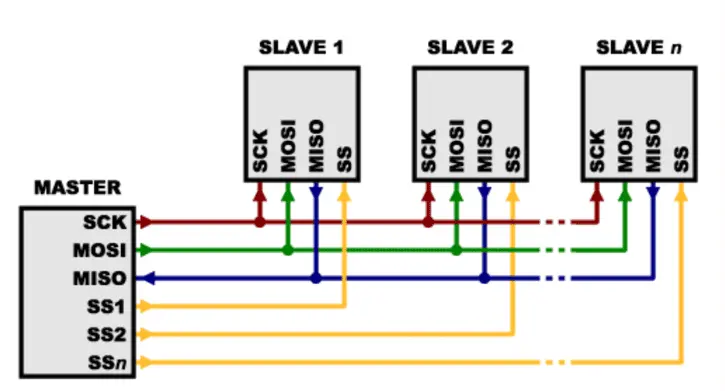

2. SPI (Serial Peripheral Interface): High-speed, four-wire protocol for rapid data exchange where it should be connected to MOSI, MISO, SCLK, and SS pins.
It is commonly used for applications that work in real-time, such as ADC or displays.
- Advantages: It’s fast and pretty reliable.
- Limitations: More wires are involved, with one chip-select line per device needed.
3. UART (Universal Asynchronous Receiver-Transmitter): A serial communication protocol commonly used for transmitting data between two devices.
Used to connect GPS modules, GSM modules, etc.
- Advantages: No clock signal is required and is supported nearly everywhere.
- Limitations: Slower than I2C or SPI.
4. 1-Wire communication: A low-pin-count protocol where a single wire handles the job of both power and data.
Most commonly used in temperature sensors like DS18B20.
- Advantages: Minimum wiring.
- Limitations: Slow speed.

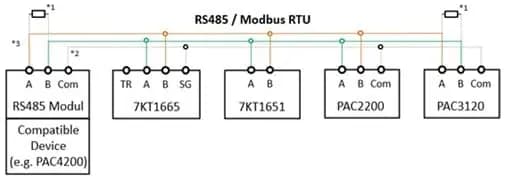

5. Modbus: Modbus is a protocol that facilitates communication at the application layer. Most commonly used in industrial sensors.
- Classes of Modbus Communications
- Modbus RTU (Remote Terminal Unit): Works with serial lines like RS-232 or RS-485, using a compact binary format. Common on industrial sensors, actuators, and controllers.
- Modbus ASCII: Runs on the same serial lines as Modbus RTU, however, its data are in a readable, human-readable format. Easier to debug by a human, though not as efficient compared to RTU.
- Modbus TCP/IP: Operates over Ethernet or TCP/IP networks. It finds application for internet-based communication in most modern systems
- Features of Modbus
- Master-Slave Communication: A single master may address multiple slave devices. The master client requests, and the slaves respond with information.
- Data Format: Designed for simplicity: transfers data like registers or coil states.
- Advantages: allows for communications between devices from different manufacturers, long-distance communications, Scalability, and can run over multiple physical communication layers.
- Limitations: Limited data rates as compared to other protocols. Relatively simple and may restrict complex communication needs.

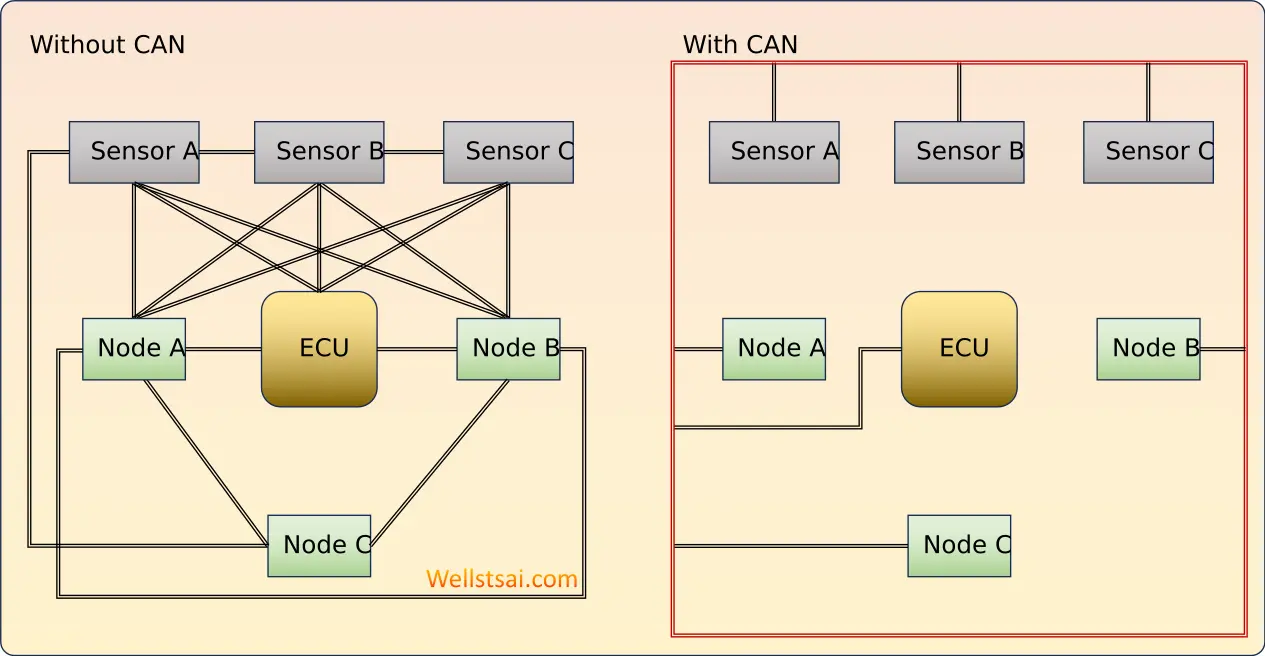

6. CAN (Controller Area Network): A real-time communication protocol for automotive and industrial use, enabling microcontrollers to communicate without a host computer.
Used in Automotive systems (e.g., engine control, airbags), Industrial machinery and robotics, and medical equipment such as ventilators.
- Advantages: Fault-tolerant and reliable, Scalable for additional nodes.
- Limitations: Limited data transfer rate (up to 1 Mbps in traditional CAN).
Types of Sensors in IoT
Sensors are basic entities in any IoT system, as they collect and transfer data from the environment. Now, let’s get into the details of sensor types and their applications.
Environmental Sensors
Most of the sensors in this module are environmental ones, measuring temperature, humidity, atmospheric pressure, and gases for real-time analysis.
Temperature Sensor

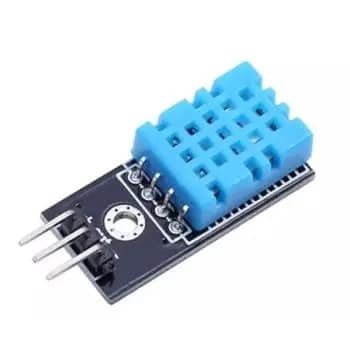

- DHT11: An affordable digital sensor temperature and humidity.

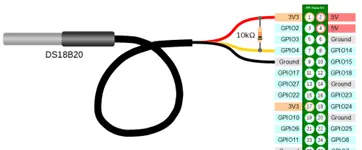

- DS18B20: A high-precision digital temperature sensor with a one-wire communication method.
- DHT11: A low-cost sensor measuring temperature and humidity.
Humidity Sensors
- DHT22: An advanced version of the DHT11 with higher accuracy and a wider humidity range.
Pressure Sensors

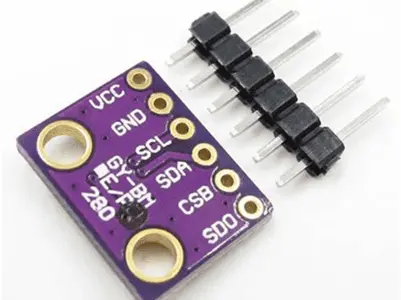

- BMP280 is a digital sensor that measures atmospheric pressure changes.
Gas Sensors

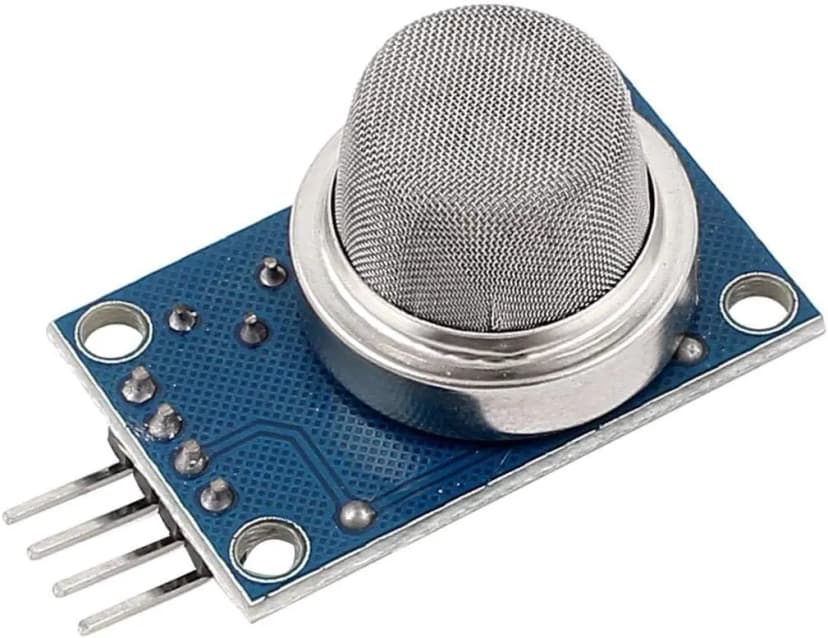

- MQ Series: A family of sensors designed to detect different gases:
- MQ-2: Used to find the presence of smoke, LPG, methane, and other gases regarding fire and combustible.
- MQ-7: This one is designed to find whether carbon monoxide (CO) is present
Likewise, there are many sensors in the series to identify many of the gases.
Where are these types of sensors used?
- Weather Stations: While monitoring environmental conditions weather station also has a place to detect poisonous gas or smoke.
- Greenhouses and Agriculture: in an agriculture field while we monitor all parameters, also we want to have some data about CO2 present and such for getting a high yield.
- HVAC Systems: Monitor ventilation, gases, Smoke, and air condition systems for energy savings.
Environmental sensors are not just tools—they’re our allies in understanding and managing the world around us, improving everything from farming practices to indoor air quality.
Motion and Position Sensors
Motion and position sensors sense the movement or the change in position or the angular velocity of the object. They are vital to the category monitoring the dynamic environments and enabling real-time interaction with the physical world. These sensors are used to identify an object’s position, orientation, and motion pattern.
Accelerometer:

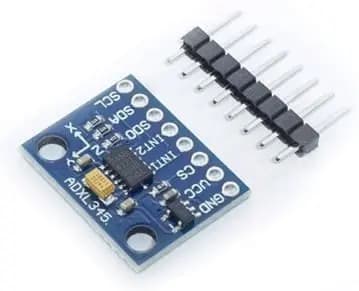

- ADXL345: A 3-axis accelerometer. This means it measures linear acceleration and can be used for motion detection, tilt sensing, and activity monitoring.
Gyroscope:

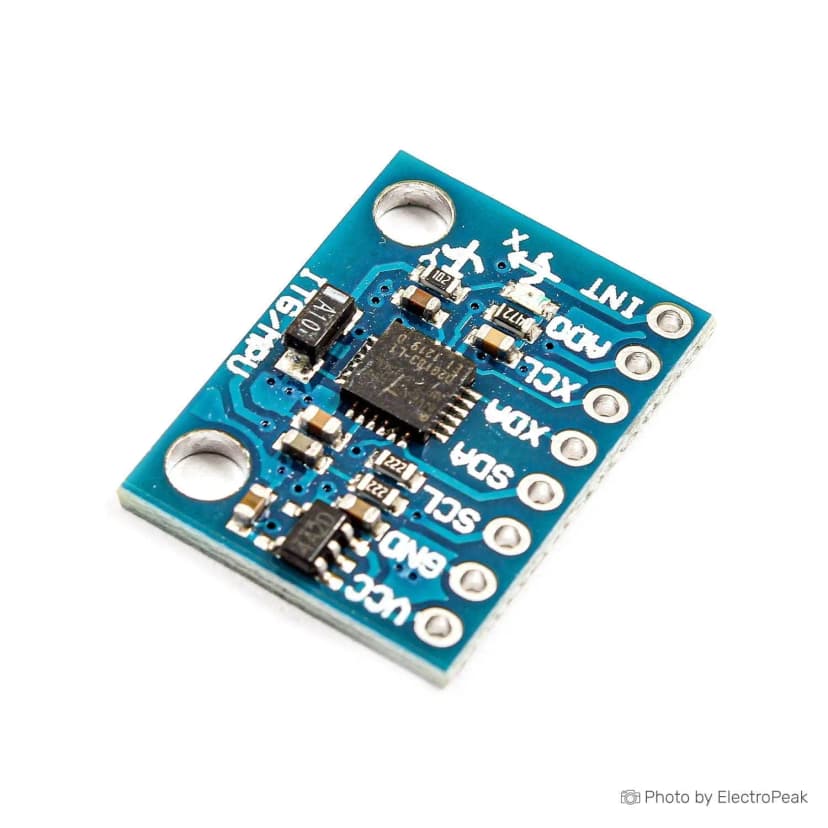

- MPU6050: A 3-axis gyroscope and accelerometer with a combined measurement of angular velocity and acceleration to track the motion accurately.
Passive Infrared (PIR) Motion Sensors:
- Senses variations in infrared radiation resulting from body heat to detect human motion. Used for security and automation often.
Where Are These Sensors Used?
Motion and position sensors are used in many modern technologies and have become necessary components in multiple industries and consumer electronics:
- Wearable fitness trackers and smartwatches: The unsung heroes in wearable technology — accelerometers and gyroscopes. They assist in counting steps, keep an eye on activity levels, and offer insights into workout routines, making fitness tracking precise and easy.
- Security System for Home & Industry: PIR motion sensors identify unwarranted motion in secured zones, setting off alarms or security cameras.
- Piloting and stabilizing a drone as it flies: Accelerometers and gyroscopes allow us to ensure precise control and stabilization of drones by monitoring shifts in position and orientation while flying.
Piloting and stabilizing a drone as it flies: Accelerometers and gyroscopes allow us to ensure precise control and stabilization of drones by monitoring shifts in position and orientation while flying.
Sensors for Distance and Proximity
Proximity and distance sensors are a kind of sensor that can be used in the scenario of identifying the presence of nearby objects, or to measure the distance between the sensor and an object. They can apply several technologies, including sound waves, infrared light, or lasers, to obtain critical information for spatial awareness of IoT applications.
Ultrasonic Sensors
- HC-SR04: Distance measurement using time taken for the echo of an emitted sound wave bounced back from the object.
Infrared Sensors
- Sharp GP2Y0A: Distance sensor; it detects the reflection of an infrared beam emitted by the sensor.
- IR module: A black LED to absorb, Colourless LED emits IR rays. It says the presence of the object and uses it to be a digital input mostly.
Laser Senser
- LiDAR (Light Detection and Ranging): Uses laser pulses to determine distances with extreme accuracy, widely used for better mapping and navigation systems.
- Time Of Flight sensor (TOF): Laser ray emits and with the time of return it calculates the distance. The most accurate one rather than others.
Where Are These Sensors Used?
- Object Detection in Robotics: Utilized in robotic systems to identify obstacles and navigate and manipulate them in dynamic environments.
- Drones and Robots: Obstacle avoidance where allows drones and autonomous robots to sense and evade obstacles in their path for seamless and safe operation
These are essential for improving situational awareness and safety in IoT, interaction with physical environments, and navigation solutions.
Light Sensors
Light Sensors are signals that detect light in the surrounding area.
Whether used in systems that need to monitor or adjust light levels automatically in response to ambient conditions, all of these sensors are critical for energy efficiency and user experience.
LDR (Light Dependant Resistor)
- An analog sensor that varies its resistance due to the amount of light. Typically used in simple applications such as automatic night lamps.
TSL2561
- Digital light sensor for lux level measurements. This sensor does precision measurements with sensitivity to infrared and visible light, well-suited for advanced applications.
Where Are These Sensors Used?
- Automatic Lighting Systems: They automatically adjust indoor or outdoor lighting based on available light, much like how your car’s headlights work, ensuring that the interior or exterior of your building is always adequately lit while saving energy.
- Solar Energy Monitoring: They are used for intensity of sunlight tracking for efficiency monitoring and optimization of solar panels.
Sound Sensors
The sound sensors classify sound waves or audio signals present in the environment. The microphones convert acoustic signals to electrical signals for analysis and processing. These sensors are important for applications that need communication by sound or tracking of the levels of audio.

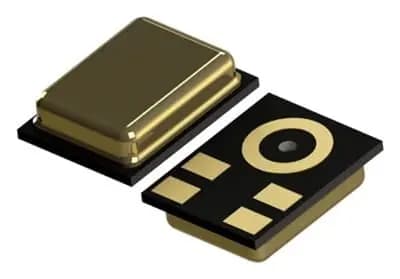

MEMS Microphone
- Many modules are using MEMS. For example, INMP441: A small, low-power digital microphone with high sensitivity, suitable for use in portable audio products and IoT systems for sound detection.
Electret condenser microphone
- This microphone you can see often in projects related to IOT. Modules like SEN1579, and SEN1522 use this mic for the input.
Where Are These Sensors Used?
- Voice-Activated Assistants: The system, as well as the use of auditory devices like Alexa, works to pick up sound waves and move data accordingly.
- Noise Pollution Monitoring: In the urban environment, it is used for monitoring and controlling noise levels, thereby facilitating the implementation of environmental regulations.
- Security Systems for Detecting Abnormal Sounds: For instance, prevent mischief by playing out agent words of precautions in emergencies.
Chemical Sensors
Devices that have been designed to detect or measure the concentration of given chemical substances in a medium, (e.g. air, water, soil). They transform the chemistry into electricity and thus it is feasible to use them for monitoring/controlling chemical processes or environmental conditions.
pH Sensors
- Determines the acid or base content of a liquid; this is important in processes like water purification and analysis of soil in agricultural contexts.
CO2 Sensors
- employed in determining the concentration of carbon dioxide in the air, these instruments can be used on ventilation systems and environmental monitoring.
Where Are These Sensors Used?
- Water Quality Monitoring: Chemical sensors make sure of safe drinking water by determining levels of pH, dissolved oxygen, and contaminants in freshwater bodies.
- Air Pollution Control Systems: Carbon dioxide and other gas sensors constitute the equipment used in measuring air quality and emissions to ensure that pollution is controlled and that the environment is healthy.
- Industrial Process Monitoring: There are chemical sensors that are used to monitor and control chemical reactions or detect harmful chemicals in the manufacturing and processing industries.
Chemical sensors are important in the Internet of Things applications focused on environmental protection, industrial effectiveness, and public health by providing real-time information on chemical interactions and concentrations.
Biosensors
Biosensors are devices that can detect biological signals and convert them into electrical signals for analysis. They are widely used in physiological monitoring, and essential for healthcare and fitness applications that allow monitoring of real-time biological activity.
Heart Rate Sensors

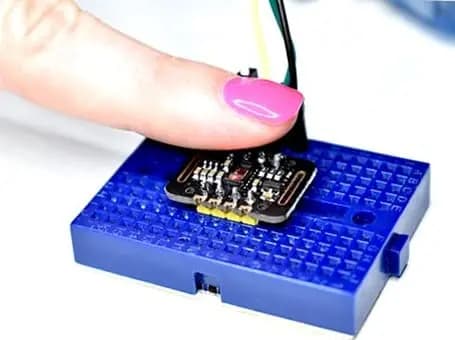

- MAX30102: This is used to heart rate, and oxygen in the blood (SpO2) using photoplethysmography (PPG).
Non-contact temperature sensor
- Temperature measurement includes the measurement the of temperature of an object’s surface without touching the object.
Tempsens provides both single point and area inspection model devices such as infrared thermometers and infrared cameras along with industrial furnace monitoring cameras.
Where Are These Sensors Used?
- Wearable Health Devices: Wearables equipped with biosensors monitor vital signs such as heart rate, SpO2, and activity levels to provide real-time health insights.
- Remote Patient Monitoring Systems: Make it easier for healthcare providers to track vital parameters of patients remotely thereby overlapping the physical gap between them and allowing easy access and early diagnosis.
- Fitness Trackers and Smartwatches: Fitness bands are an example of this, which employ biosensors to obtain heart rate and information about physical activity, thereby altering lifestyle.
Biosensors Have a Transformative Role in IoT Healthcare Applications and enhance health monitoring and protective care.
Specialized Sensors
Specialized sensors are intended for unique or niche applications, which can be common to certain industries or environments. These sensors meet unique requirements, providing targeted data to improve functionality in niche IoT solutions.

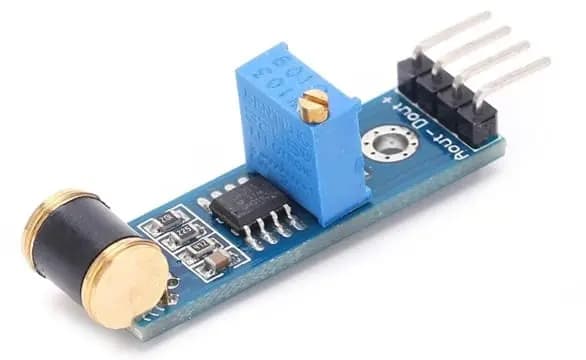

Vibration Sensors
- An older measurement, but quite a remarkably useful one to analyze mechanical vibrations and detect anomalies in industry machines for predictive maintenance.

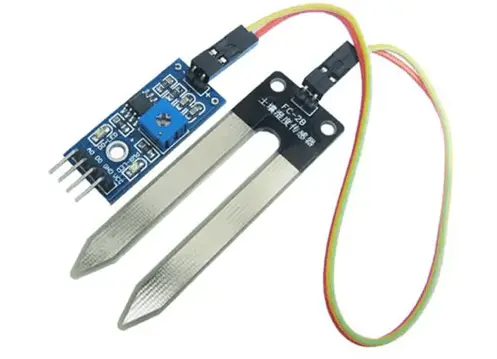

Soil Moisture Sensors
- This is very useful for agriculture where we need to measure the water content in soil so that we can optimize irrigation.
Where Are These Sensors Used?
- Predictive Maintenance in Industrial Machinery: Vibration sensors track machinery for indications of wear and tear so a company can minimize downtime and expenses.
- In Agriculture—Smart Irrigation Systems: Soil moisture sensors help receive some live data that help in proper water usage thus improving healthy crops and saving resources.
- Detection of earthquakes and vibration analysis: Vibration sensors are used in earthquake-prone areas to monitor building stability and detect seismic activity.
Industry-specific challenges demand specialized sensors: tailored solutions that address the needs of each sector, enhancing efficiency, safety, and sustainability.
AI-Powered Sensors
AI-enabled sensors are the next evolution of IoT and edge computing. Essentially, AI-powered sensors take what conventional sensors do in the Internet of Things (IoT) realm today with edge computing, and add more autonomously functional sensing capabilities on top.
Features
- Edge Processing: Process data at the edge, reducing the need for cloud processing.
- Anomaly Detection: Be able to learn without pre-defined rules.
- Self-Calibration: Based on ambient changes, adjust the accuracy/performance dynamically.
Benefits
- Real-Time Insights: AI algorithms provide actionable data instantly.
- Reduced Data Transmission: Minimizes the requirement of raw data transmission to the cloud resulting in bandwidth saving and privacy preservation.
- Scalability: Can be deployed on large-scale IoT networks like Smart Cities or Industrial IoT.

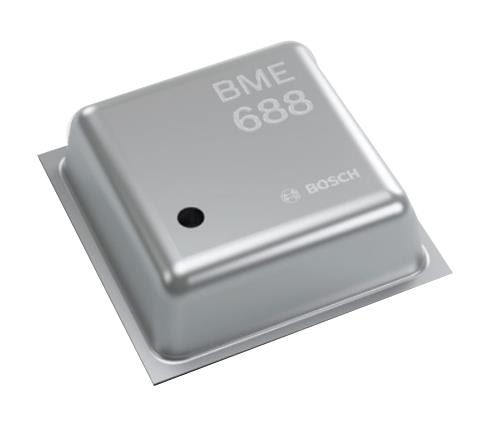

Bosch BME688
This is an AI-integrated gas sensor that can measure volatilized organic compounds (VOC), temperature, humidity, and barometric pressure. Machine Learning on this sensor can be used to categorize air quality trends for environmental control.
Applications
- Smart cities (air quality management).
- Predictive maintenance in industrial settings.
- Personalized health monitoring (wearable air quality sensors).

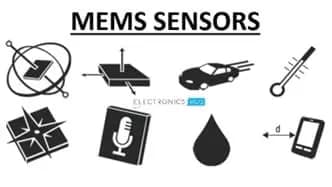

MEMS-Sensors (Micro Electro Mechanical system)
Microelectromechanical systems (MEMS) are devices with a micrometer-scale size for sensing, manipulation, or actuation. They have been extended in scope to cover microsensors and microactuators; the latter are also known as MEMS devices. Microsensors convert mechanical, thermal, chemical, or biological stimuli into electrical signals for processing at larger scales. Microactuators convert large signals into microscopic motion.
Mechanical and electrical components are combined in MEMS sensors to sense motion, pressure, or other environmental characteristics. Due to their small size and high precision, they make great IoT sensor candidates.
- MEMS Accelerometers: They are used to measure acceleration in fitness trackers and smartphones (e.g., ADXL345).
- MEMS Gyroscopes: They detect angular velocity for drone navigation and gaming controllers.
- MEMS Microphones: Capture audio in smart speakers and hearing aids (e.g., INMP441).
Applications
- Wearables (which include fitness trackers, and health monitoring).
- Automotive systems (airbag deployment, stability control).
Quantum sensors
Quantum sensors are devices that use quantum correlations, such as entanglement, to achieve enhanced measurement sensitivity or resolution compared to classical systems. Quantum sensors have been developed for numerous applications, including imaging magnetic fields, atomic clocks, gyroscopes, and gravitational field measurements, and have also shown promise for use in biomedical sensors and quantum information science.
Several major changes in the interpretation of quantum mechanics have been proposed recently.
- Atomic Clocks: Ultra-precise timekeeping in GPS.
- Quantum Magnetometers: Measure extremely weak magnetic fields for medical imaging (MRIs) and navigation.
- Quantum Gravimeters: Use quantum interference to measure inertial forces with unprecedented precision and detect subterranean objects as sinks of the gravitational field.
Application of Quantum sensors
- Navigation in GPS-denied environments.
- Oil and gas exploration.
- Advanced medical diagnostics.
Conversion of Communication Protocol of sensors
IoT systems frequently need sensors with incompatible communication protocols, but they must be integrated into a single platform. Protocol converter provides this compatibility.
- I2C to SPI Converters: These are used when you want to connect a sensor or controller that works on an I2C bus with a sensor or controller that works on an SPI bus and vice versa.
- RS485 to USB: Most of the legacy industrial systems work on RS485 and connecting them with modern-day interfaces which mostly work on USB can be done using these types of converter.
- I2C Multiplexers: Allows you to have multiple sensors with the same address on one bus.
Where are we using this protocol conversion?
- Industrial automation systems that interconnect legacy and modern sensors.
- Smart farming uses diverse types of sensors in a distributed manner.
Anything to take into account when choosing sensors?
Choosing the correct sensors is of the essence to guarantee the highest possible performance in your IoT project: accurate, consistent, and fast. Dig Deeper into the Critical Factors for You When Selecting the Sensor
The following factors are to be considered when we select a sensor.
- Project Needs
The starting point is learning what exact specifications you will require such as temperature, motion, or light. Think about how the sensor is expected to be deployed, including limitations such as temperature ranges, humidity, etc. Matching the sensor capabilities to the requirements of your project is the first path to success.
- Sensor Specifications
Rate sensor features: accuracy resolution & response time Accuracy makes sure that the sensor returns correctly important for applications where precision is critical, such as medical or industrial systems. Resolution: This refers to the smallest change the sensor can detect and response time is how long after the trigger is received does sensor begins to stabilize. These are the attributes that are essential to picking a sensor of your choosing for the technical needs of your project.
- Power Requirements
Low-power sensing is important for battery-powered devices, allowing the energy budget and lifetime of the device. Most sensors have sleep modes, which automatically put power usage aside when the sensor is not actively measuring. Important for remote and portable IoT devices (remote sensors), and efficient power management.
- Size and Form Factor
The size and Shape of the sensor can directly affect your project thought process. For wearable or portable devices where space is at a premium, compact sensors can make better than larger factory sensors or stationary ones. Make sure the shape of this fits perfectly in your device form factor as well.
- Cost
It is worth noting that sensor costs can vary considerably so bear this in mind when trading off performance for budget. Do not over-specify, sometimes a much simpler and cheaper sensor will work for you! Estimate the scope and prioritize sensors that deliver greater bang for your buck, without cutting out critical features.
- Data Output
Sensors send data in either analog or digital format. Analog sensors provide a signal that can be processed at low cost through simple electronics, such as an ADC. Digital sensors output the data in standard protocols like I2C, SPI, or UART and they are easy to use for microcontrollers and other IoT platforms. Choose the right data format to have compatibility with your system.
Particularly by calculating these, you can arrive at the accurate sensor that is considerate of its needs and that will perform, workable, and useful for life.
Calibration and Maintenance of sensors
Calibration
Calibration is the process of adjusting a sensor’s output to ensure it accurately represents the measured parameter. It entails measuring the readings from the sensor by observing a strong standard and the requirement for necessary corrections.
Why It Matters?
- Make sure that sensors output what they say (quality of signal)
- Minimizes manufacturing variations or environmental effects and sensor degradation errors.
- Important for critical applications such as in healthcare, industrial automation, or environmental monitoring
Calibration Examples
- Gas sensors calibrated with known concentrations of gas.
- Temperature sensor measurements vs calibrated thermometers
Maintenance
Sensor maintenance should be at the top of your long-term sensor scheduling when operations are critical with time (this applies especially for long-term deployments.
Why It Matters
- Avoids drift: the sensors can gradually deteriorate and deliver inaccurate measurements.
- Guarantees reliability: Reduce downtime and guarantee continuous operation of the system
Key maintenance items:
- Cleaning─free dirt, dust, or impurities on the sensing surface of a sensor for an IoT project.
- Recalibrate: go through the procedure regularly to account for changes in your senors environment, or, while it works.
- Firmware Updates: for smart sensors, update the firmware to correct bugs and improve functionality.
For places that are remote or impossible (such as smart farming/ instrumentation or environmental devices) use an elf-calibrating sensor if possible or systems routine calibration. Rather hard materials and shelters to decrease maintenance demands under high-tempered actions. The success of IoT projects lies in proper calibration and maintenance.
Conclusion
Choosing a sensor for an IoT project is the foundation stone of a successful IoT project as a whole. By taking into account project requirements, the surrounding conditions, and sensor capabilities, communication protocols that underpin maintenance routines help greatly optimize your system performance and reliability. Selecting the right sensors for your project yields correct data and smart operation, consequently optimizing energy consumption and fits well into the design.
It is a good way for beginners and hobbyists to get some more depth about the sensors — what they can do / can’t do. Every sensor for an IoT project is a different world where you get inspired and can create your first IoT applications.
In developing a small DIY project as well as a system solution of a larger scale, always remember that the choice of sensor for an IoT project is not an engineering choice – it is a step closer to smarter, more efficient, and change-making your project.
References
https://www.parkoursc.com/archives/1704 important factors when considering a selection of sensor for an IOT projects.
https://www.zipitwireless.com/blog/what-are-iot-sensors-types-uses-and-examples What are IoT sensors
https://talkingiot.io/selecting-the-right-sensor/ Selecting right sensor for an IoT project
https://www.prismetric.com/types-of-iot-sensors/ IOT sensor types
https://www.mokosmart.com/types-of-sensors-in-iot/ how to select right type of sensors
https://www.geeksforgeeks.org/sensors-in-internet-of-thingsiot/?utm sensors in IOT
https://online.uc.edu/blog/how-to-choose-the-right-iot-sensor/ choose right sensor for an IoT projects
https://www.geeksforgeeks.org/sensors-in-internet-of-thingsiot/ IOT sensors selection guide
https://sensorpartners.com/en/knowledge-base/artificial-intelligenc-and-sensors-a-powerful-combination/?utm_source=chatgpt.com Combination of AI with sensor for an IoT project
https://www.winsen-sensor.com/knowledge/ai-with-sensor.html?utm integration of AI with sensors
https://www.bosch-sensortec.com/media/boschsensortec/downloads/datasheets/bst-bme688-ds000.pdf about BME688 sensor for an IoT project
https://www.edn.com/combo-mems-sensor-solution-with-integrated-gas-sensor-launches-at-ces/ MEMS sensors
https://quantum.yale.edu/quantum-sensors Quantum sensors
https://www.mckinsey.com/capabilities/mckinsey-digital/our-insights/tech-forward/quantum-sensing-poised-to-realize-immense-potential-in-many-sectors application of Quantum sensors
https://q-ctrl.com/our-work/quantum-sensing Quantum sensors
https://community.st.com/t5/others-hardware-and-software/interfacing-bosch-bme688-sensor-with-stm32/td-p/747079 its regarding BME688 with STM32
